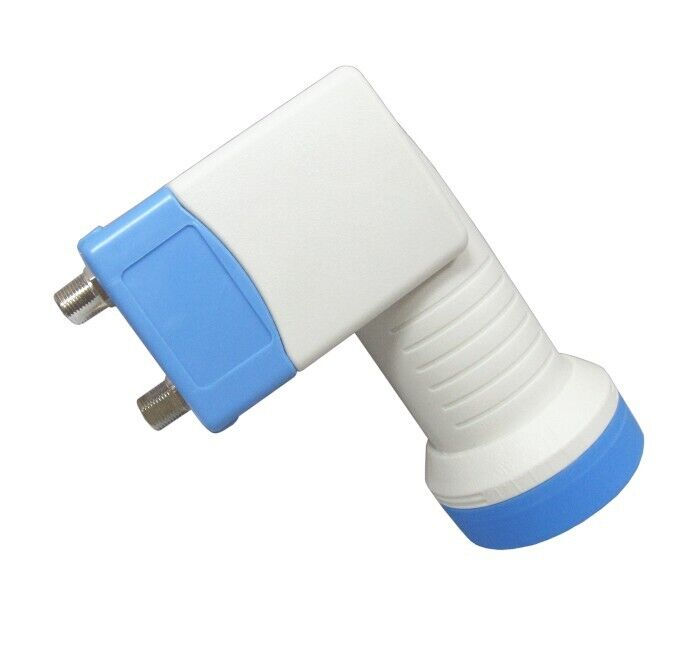

Single LNB,Twin LNB,Quad LNB,Eight output lnb
Can easy locked Ku weak satellite signal like 9E,13E,16E,26E,4W,7W....... in west africa and east africa country, Even worked well in bad weather via Satstar LNBF.
Noise Temperature: 0.3dB
Shipping info
Send via DHL, UPS, Fedex, EMS, TNT, or Door to Door ( nigeria, congo,zambia,ghana,togo,kenya,niger, south africa...all africa country or europe, middle east market)
or normal air , you also can buy goods in local shop
Product info
Parameter Specification
Low Band
High Band
Input frequency range 10.7-11.7GHZ
11.7-12.75GHZ
Output frequency range 950-1950MHZ
1100-2150MHZ
Noise Figure 0.3dB
Conversion Gain 65dB(TYP.)
Gain Flatness ±0.5dB/27MHZ
Cross pol Isolation 21dB(TYP.)
L.O.Frequency 9.75GHZ
10.6GHZ
L.O.Frequency Stability ±1MHZ(MAX.) @ ＋25℃
±1.5MHZ(MAX.) @ -40℃～＋80℃
L.O.Phase Noise -60dBc/HZ @ 1KHZ
-85dBc/HZ @ 10KHZ
-90dBc/HZ @ 100KHZ
Gain Variation P-P ±2.5dB(MAX.)
Image Rejection 40dB(MIN.)
P 1dB Gain Compression 0dBm(MIN.)
Output VSWR 2.5:1(MAX.)
DC Current Consumption 100mA(MAX)
LOW/HIGH BAND Switching 0KHZ
22±4KHZ
Output Connecter 75ohm(F-Type)
POL Switching Voltage 11.5～14.5V @ V Polarization
15.5～22.0V @ H Polarization
Operating Temperature -40℃～＋80℃
Relative Humidity 5%～90%
